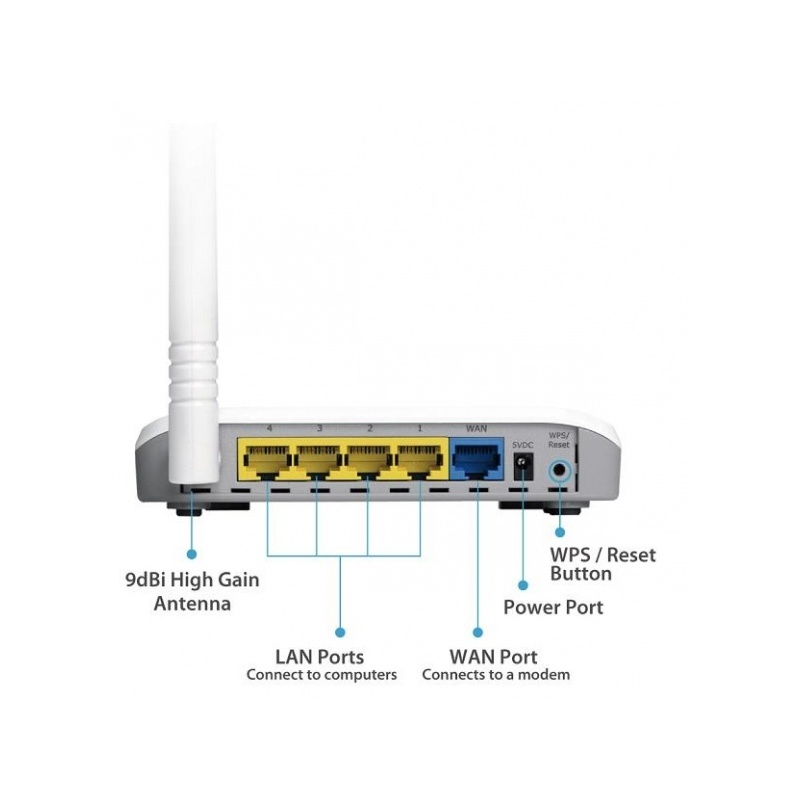

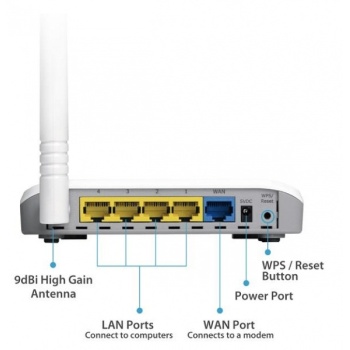

Ruuter, Wifi ruuter Edimax Zoom

Ruuter, Wifi ruuter Edimax

Tootekood: BR6428NSV4
Laoseis: Tellimisel
Kogus: - +
   - või -
Edimax 802.11b/g/n N150 3in1 Router, AP, Extender, 1xWAN, 4xLAN, 9dBi antenna
WAN connectors 1x 10/100BaseTX (RJ45)
LAN connectors 4x 10/100BaseTX (RJ45)
Built-in Flash memory 4 MB
Built-in SDRAM memory 16 MB
Management, monitoring and configuration WEB management
Supported routing protocols
  • Static Routing
  • Dynamic Routing
Supported protocols and standards
  • IEEE 802.3u - 100BaseTX
  • IEEE 802.3 - 10BaseT
  • WISP - Wireless Ineternet Service Provider
  • DynDNS - Dynamic Domain Name System
  • NAPT - Network Address/Port Translation
  • NAT - Network Address Translation
  • PPPoE - Point-to-Point Protocol over Ethernet
  • DHCP Server - Dynamic Host Configuration Protocol Server
  • DHCP Client - Dynamic Host Configuration Protocol Client
  • DMZ - Demilitarized Zone
  • QoS - Quality of Service
  • UPnP - Universal plug-and-play
  • SIP - Session Initiation Protocol
  • WDS - Wireless Distributed System
  • Auto MDI/MDI-X
  • WMM - Wi-Fi Multimedia
  • IQ setup 2.0
Authorization and access control protocol
  • ACL based on MAC
  • ACL based on IP i protocol type
Supported VPN protocols
  • IPSec pass-trough
  • PPTP pass-trough
  • L2TP pass-trough
Maximum Users (LAN) 253
Protection before Denial of Service (DoS) attacks
  • all known
  • Denial of Service
  • Port Scan attack
  • SYN Flood
  • Ping of Death
Additional functions
  • port triggering
  • for DSL connection Ethernet RJ45 output necessary
  • Supports Cable TV internet
  • SPI Firewall - Stateful Packet Inspection
  • Port forwarding (Virtual Server)
  • URL filtering
  • WDS (Wireless Distribution System)
WLAN support Yes
Supported networks - WirelessLAN
  • IEEE 802.11b - Wireless LAN 11Mbps, 2.4GHz
  • IEEE 802.11g - Wireless LAN 54Mbps, 2.4GHz
  • IEEE 802.11n - Wireless LAN 150Mbps, 2.4GHz
Maximum Users (WLAN) 253
Encryption
  • WPS - Wi-Fi Protected Setup
  • WEP - Wired Equivalent Privacy
  • WPA (PSK) - Wi-Fi Protected Access (Pre-Shared Keys)
  • WPA (TKIP) - Wi-Fi Protected Access (Temporal Key Integrity Protocol)
  • WPA2 (PSK) - Wi-Fi Protected Access 2 (Pre-Shared Keys)
Wireless chipset Realtek
Built-in antenna gain 9 dBi
External antenna connector Yes
External antenna connector type RP-SMA
Standard accessory
  • 5V DC/1A power supply
  • pachcord RJ45, UTP, cat. 5
Additional information
  • 3-in-1 Router, Access Point and Range Extender; easy switch with IQ setup 2.0
  • Guest wi-fi network; connection for guest isolating from primary site
  • New web UI version 2.0
  • Antenna: 38.5cm, 40g
Height 28 mm
Width 135 mm
Depth 110 mm
Net weight 163 g
Datasheet PRODUCT WEB [LINK]
